Product Description
|
|
Muab ob npaug rau glazing insulated iav muaj ob lub plies ntawm iav ntim los ntawm ib lub spacer nrog siv argon los yog krypton ntawm ob lub iav ntawm iav muab cov rwb thaiv tsev ntxiv, vim cov roj cua no denser dua huab cua thiab tsis tshua muaj peev xwm cia cua sov los ntawm IGU.
Insulating iav yog ib txoj hauv kev zoo heev los txo cov cua-rau-kub hloov los ntawm glazing. Thaum siv nrog Low-E thiab reflective coatings ntawm #2 sab, IG units ua tau zoo dua rau kev txuag lub zog thiab ua raws li kev thov kev tsim kho .As Low-E coatings tau ua zoo dua ntawm kev txo cov cua-rau-cua cua kub hloov spacer tshuab muaj ua lub hom phiaj ntawm kev txhim kho ntxiv. Cov khoom lag luam zoo ib yam yog tsim los ntawm cov txhuas uas muaj cov desiccant kom nqus tau cov dej seem seem hauv IG units, yog li txo qhov muaj peev xwm condensation. Thaum qhov no yog cov khoom siv muaj zog, cov ntawv cog lus aluminium-rau-iav yog qhov ua tau zoo thermal conductor thiab tuaj yeem ua rau kom muaj peev xwm rau qhov kub thiab txias sib txawv ntawm qhov nruab nrab ntawm iav thiab ntug ntawm iav, uas tuaj yeem ua rau condensation thiab txo cov chav tsev. zuag qhia tag nrho U-tus nqi.
Yog tias koj txaus siab rau peb double glazing iav, thov koj xav tiv tauj peb.
Specifications
Thickness ntawmiav | 3 hli, 4mm, 5mm, 6mm, 8mm, 12mm, 15mm, 19mm |
Hom iav | Clear ntab, Ultra ntshiab, Bronze tinted ntab, Euro grey tinted ntab, Tsaus grey tinted ntab, Tsaus xiav tinted ntab, Fort / Lake xiav tinted ntab, F-Green tinted ntab, Tsaus ntsuab tinted ntab, mos Low-E, tawv coated Low-E, qauv iav, reflective iav thiab lwm yam. |
Aluminium spacer thickness | 4 hli, 5mm, 5.5mm, 6mm, 6.5mm, 7mm, 8mm, 8.5mm, 9mm, 10mm, 11mm, 11.5mm, 12mm, 14mm, 14.5mm, 15mm, 16mm, 17mm, thiab lwm yam. |
Qhov loj ntawm bent tempered iav | 150 * 100mm -10000 * 3000mm |
Cov iav tuaj yeem laminated, tempered, khoov, polished npoo, drilled, tripped, thiab silkscreened, digital printed | |
Qhov ntau thiab tsawg tuaj yeem yog 6mm, 9mm, 12mm, 15mm ... | |
Khoom Loj | Customized | Min: 300mm * 300mm | Max. 3300mm * 6000mm |
Cov duab | Curved los yog ca | ||
Qhov | Yog (yuav tsum tau kos duab) | Tsis muaj | |
Roj Filler | Yog (Argon los yog lwm yam inert gases) | Lub tshuab nqus tsev | |
Txuj kev tsim khoom zoo | 1. EN 1279-5 2. AS/NZS 4666 3. ASTM E 2190 1 | ||
Kev tshuaj xyuas | Cov txheej txheem tshuaj xyuas los ntawm cov cuab yeej tshwj xeeb tom qab txhua kauj ruam | ||
Ntau Yam: Insulating iav units muaj xws li insulating iav, laminated insulating, ob chav laminated insulating thiab triple insulating nrog ib tug ntshiab ntab iav, tinted iav, tempered iav, reflective iav thiab Low-E iav uas yuav nyuaj Low-E los yog mos Low-e nrog ib tug silver. txheej, ob txheej nyiaj ib leeg thiab triple nyiaj txheej nrog cov neeg siv khoom sib txawv ntawm daim ntawv thov.
Khoom Feature
1. Kev tswj lub hnub ci thiab pom lub teeb dhau los ntawm qhov pom kev pom kev pom kev zoo, kev sib xyaw ua ke zoo tshaj plaws ntawm lub teeb pom kev zoo.
2. Kev xaiv zoo tshaj plaws spectral kev ua tau zoo, high-end ntsuab lub tsev, tsis tshua muaj cua sov hloov coefficient, txo cov cua sov hauv tsev thiab sab nraum zoov, ua kom sov hauv tsev tsis tu ncua.
3. Sib tsoo los ntawm kev txuag hluav taws xob, txo kev nqis peev hauv cov cuab yeej siv vaj tsev ntsuab, shading coefficient, txo cov hnub ci hluav taws xob hluav taws xob kom zoo, thiab txo cov nqi cua txias rau lub caij ntuj sov.
4. Suab rwb thaiv tsev kev ua tau zoo, ib txheej iav tuaj yeem txo cov suab nrov rau 20-22dB.Insulated iav tuaj yeem txo suab nrov rau 29-31 thaum lub iav tshwj xeeb insulated rau 45dB.
5. Kev nyab xeeb, ob chav glazed qhov rais yog qhov nyuaj rau kev tawg dua li ib lub qhov rais pane, yog li lawv ua kom muaj kev ruaj ntseg ntawm lub tsev. Vim tias lawv tau kaw nruj dua li lwm lub qhov rais, nws tseem nyuaj dua los yuam kom lawv qhib sab nraud.
Daim ntawv thov
1. Qhov rai thiab qhov rooj

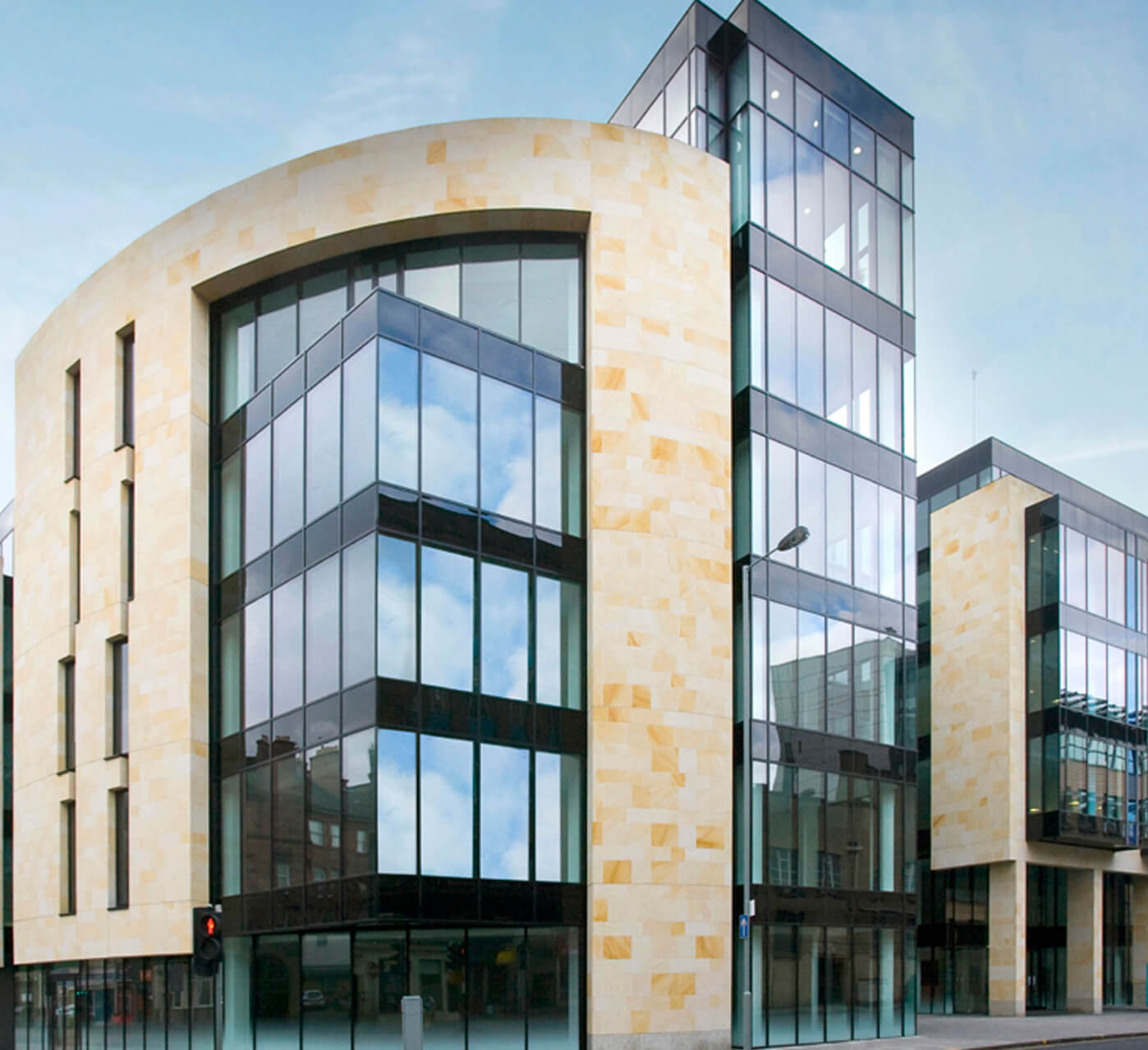

2. Curtainwall thiab facades
3. Lub tub yees
4. Cov txheej txheem iav phab ntsa
5. Skylights thiab overhead glazing
|
|
|
